DESCRIPTION

OUR 3-POINT HITCH IMPLEMENTS ARE 3-TIMES BETTER

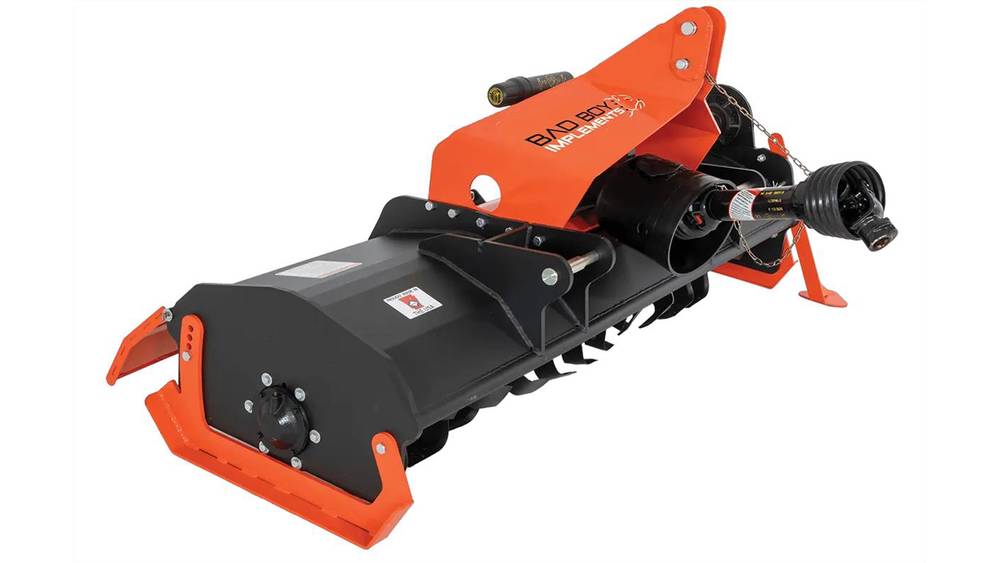

Our line of Bad Boy tough three-point hitch and front loader quick attach implements are built for a lifetime of work around the field and farm. Built from heavy-gauge, welded and fabricated steel, they’re more than ready to pull their weight around on your property.

SPECIFICATIONS

• Tractor HP Range: 25 to 45
• Tractor Hitch: CAT 1 & 2
• Working Width: 54 1/2"
• Overall Width: 63 1/2"
• Weight: 698 lbs.
• Max Tilling Depth: 6.5"
• Drive Type: Gearbox
• Number Of Tines/Flanges: 42/7
• Tines Per Flange: 6
• PTO Speed: 540
• PTO Driveline Protection: Slip Clutch
• Till Direction: Forward
• Adjustable Skids: Yes
• Quick Hitch Compatible: Yes

DIMENSIONS

Working Width54 1/2 in.Width63 1/2 in.

GENERAL

• Recommended HP25-45 HPWeight698 lb.
