Description:

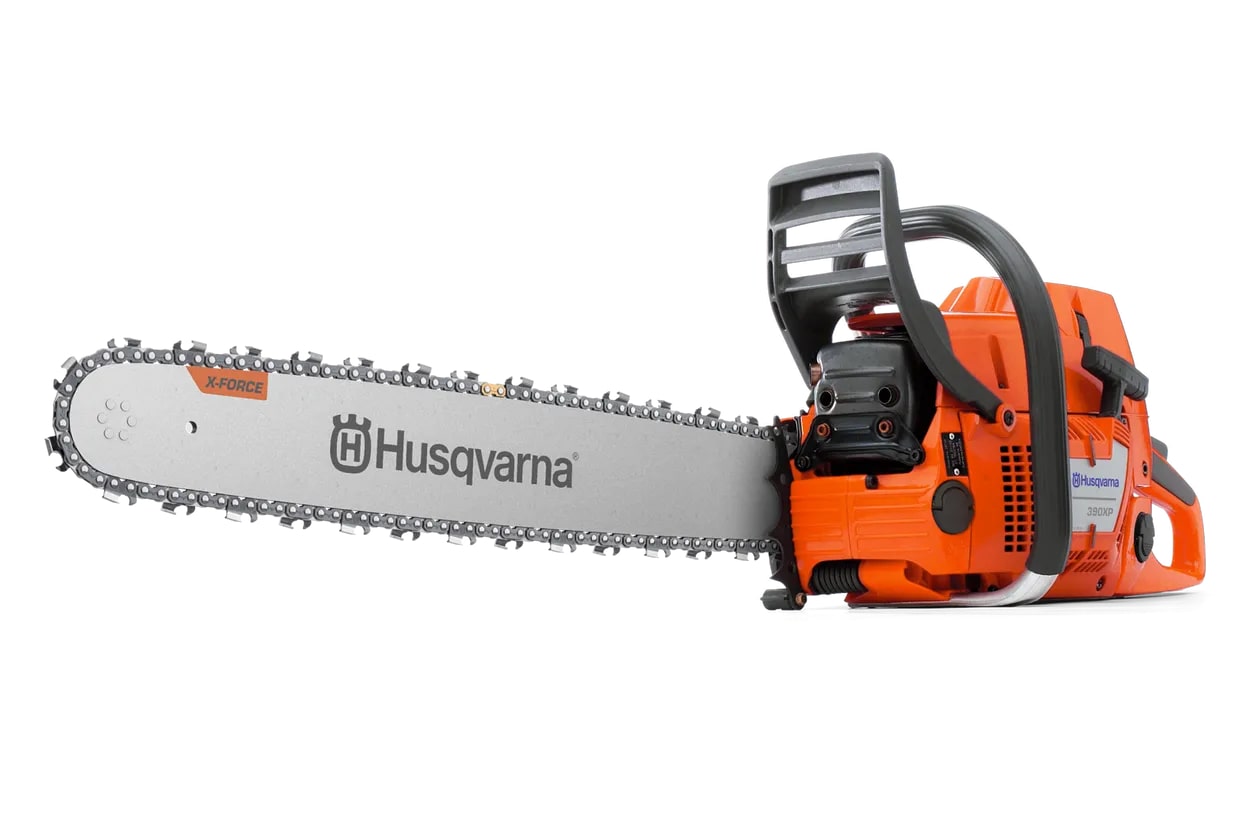

Professional 88cc chainsaw designed for sawing with longer bars

Discover the high end of logging and forestry chainsaws. The Husqvarna 390 XP® features professional performance and excellent vibration dampening, making work easier and more efficient than ever before. The LowVib® system and smart ergonomics make this large, powerful saw easy to handle – even with longer guide bars. Additionally, Smart Start® technology guarantees faster start-ups, while the rubber-mounted carburetor boosts durability. Prepare to get the job done like never before.

Specification:

SKU: 965 06 07-20

Bar Details:

• Bar Length: 20 in (50 cm)
• Pitch: 3/8"
• Gauge: .050"
• Assembly Required: Yes

Engine Specifications:

• Chain Speed at Max Power: 70.2 fts
• Cylinder Displacement: 88 cm³
• Output Shaft Power: 6.5 hp
• Max Torque: 4.7 Nm
• Max Torque at RPM: 6,600 rpm
• Clutch Engagement Speed (±120): 3,600 rpm
• Electrode Gap: 0.02 in
• Idling Speed: 2,700 rpm
• Ignition Module Air Gap: 0 in
• Maximum Power Speed: 9,600 rpm

Oil Pump Specifications:

• Max Oil Pump Capacity: 24 ml/min
• Min Oil Pump Capacity: 6 ml/min
• Oil Pump Type: Adjustable flow

Spark Plug:

• Champion RCJ7Y
• NGK BPMR7A

Recommended Bar Length:

• Min: 18 in
• Max: 28 in

Chain Type: C83

Sprocket Type: Rim 7

Gauge: .050"

Weight (Excl. Cutting Equipment): 16.1 lbs

Sound and Noise:

• Sound Pressure Level at Operator’s Ear: 107 dB(A)
• Sound Power Level, Guaranteed (LWA): 119 dB(A)
• Sound Power Level, Measured: 117 dB(A)

Vibration:

• Equivalent Vibration Level (ahv, eq) Rear Handle: 6.2 m/s²
• Equivalent Vibration Level (ahv, eq) Front Handle: 3.5 m/s²

Lubricant:

• Oil Tank Volume: 1.06 US pint
• Lubricant Type (Engine): Husqvarna 2 stroke or equivalent at 50:1
