Description:

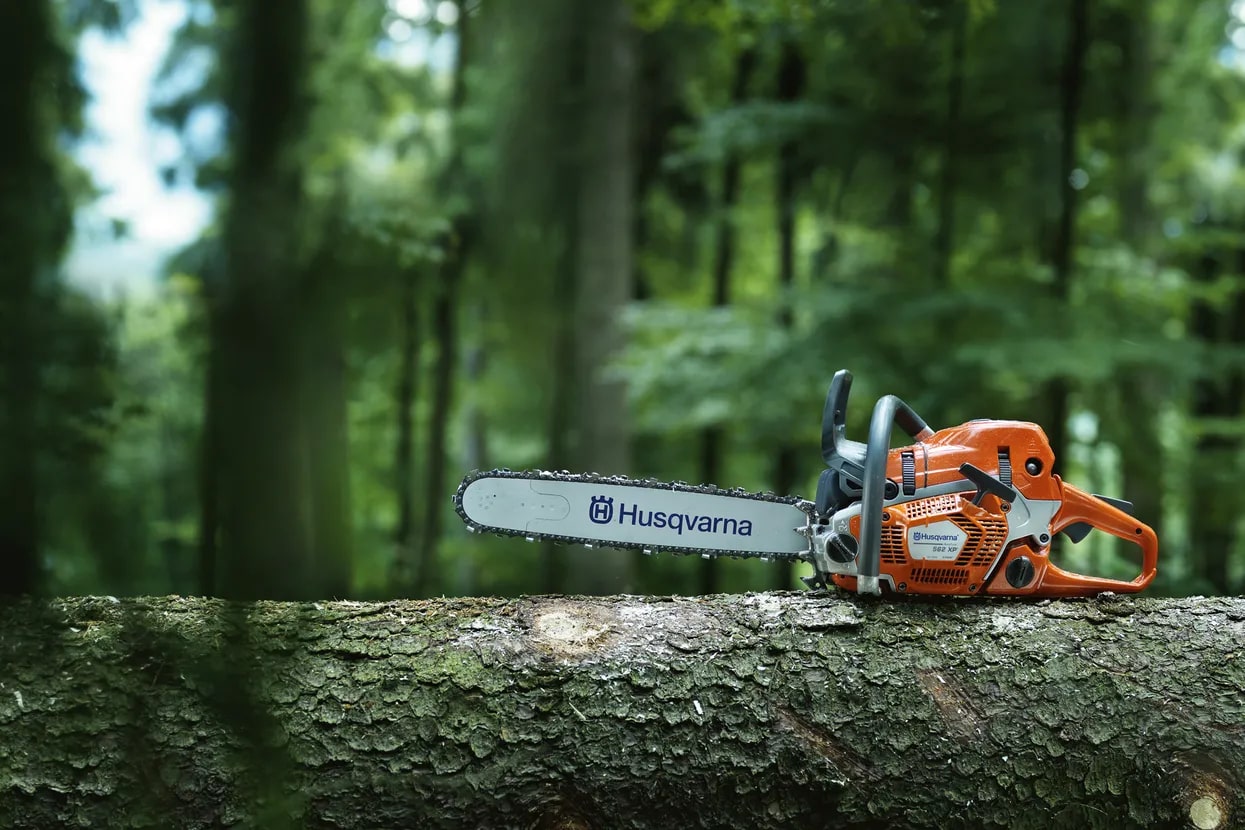

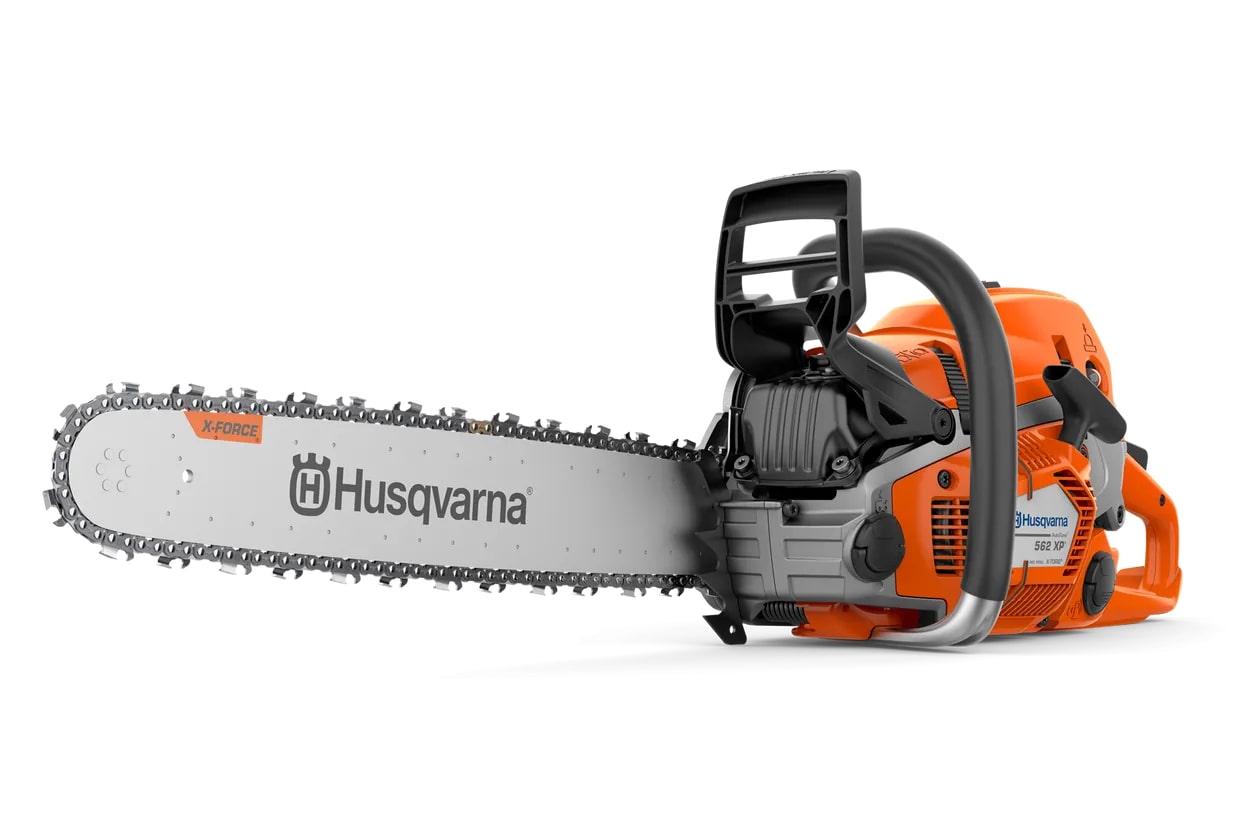

Husqvarna 562 XP® is developed for professional loggers, tree care workers and skilled land owners. The saw has a ground breaking design and is loaded with innovative solutions for efficient, convenient operation with large air filter and the ability to fit 28" bars. Our unique X-Torq® engine technology provide more power where you need it, up to 20% less fuel consumption and 75% less exhaust emission.

Features:

• AutoTune
• Powerful and Efficient X-TORQ® Engine
• Air Injection™ Technology
• Flip-Up Fuel Cap
• Fast acceleration
• LowVib® Technology
• Adjustable Oil Pump
• Quick-Release Air Filter
• Magnesium crankcase
• Combined Choke/Stop Control
• Quick release air filter cover
• Snap-Lock Cylinder Cover
• Three-Piece Crankshaft
• Side-Mounted Chain Tensioner
• Slimmed-down design
• Felling marks
• Fuel Indicator
• Smart Start® Technology
• Inertia-Activated Chain Brake
• Quick Start with Air Purge
• Retained bar nuts

Specifications:

Engine

• Chain Speed at Max Power: 69.9 ft/s
• Cylinder Displacement: 59.8 cm³
• Output Shaft Power: 4.7 hp
• Torque (Max): 3.65 Nm
• Torque Max at RPM: 8,100 rpm
• Clutch Engagement Speed (±120): 4,300 rpm
• Idling Speed: 2,800 rpm
• Maximum Power Speed: 9,600 rpm
• Oil Pump Type: Adjustable flow
• Spark Plug: NGK CMR6H
• Electrode Gap: 0.02 in
• Ignition Module Air Gap: 0.01 in

Cutting Equipment

• Bar Type: RSN (Replaceable Sprocket Nose)
• Bar Length: 45 cm (18 in)
• Pitch: 3/8"
• Gauge: .058" (1.5 mm)
• Chain Type: C85
• Recommended Bar Length (Min–Max): 15 in – 28 in
• Sprocket Type: Rim 7

Dimensions & Weight

• Weight (Excl. Cutting Equipment): 13.4 lbs

Sound and Noise

• Sound Pressure Level at Operator’s Ear: 106 dB(A)
• Sound Power Level, Guaranteed (LWA): 118 dB(A)
• Sound Power Level, Measured: 116 dB(A)

Vibration

• Front Handle (ahv, eq): 3.2 m/s²
• Rear Handle (ahv, eq): 5.0 m/s²

Lubrication

• Oil Tank Volume: 0.7 US pint
• Lubricant Type: Husqvarna 2-stroke oil or equivalent (50:1 mix)

Emission

• Exhaust Emissions (CO₂ EU V): 777 g/kWh
