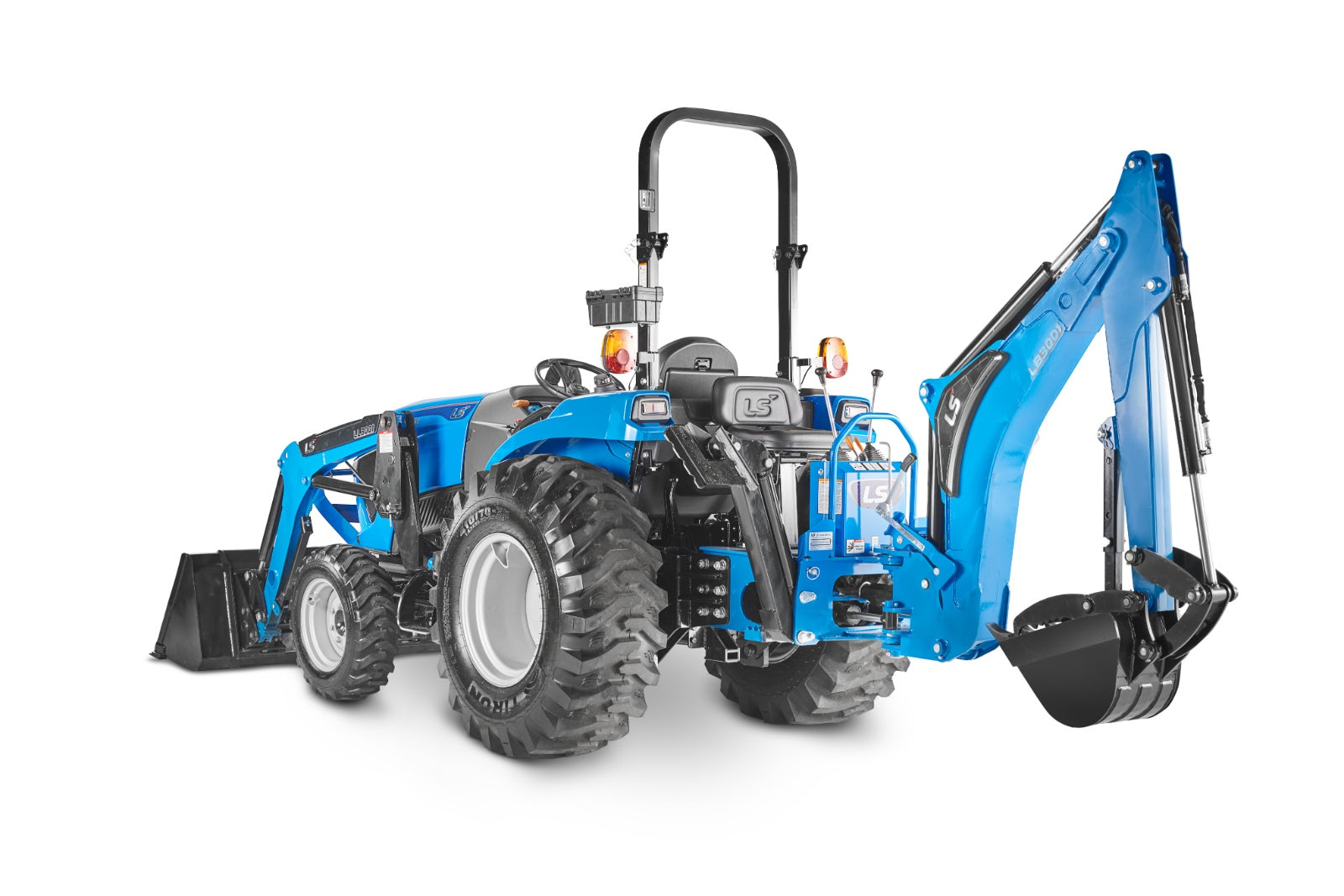

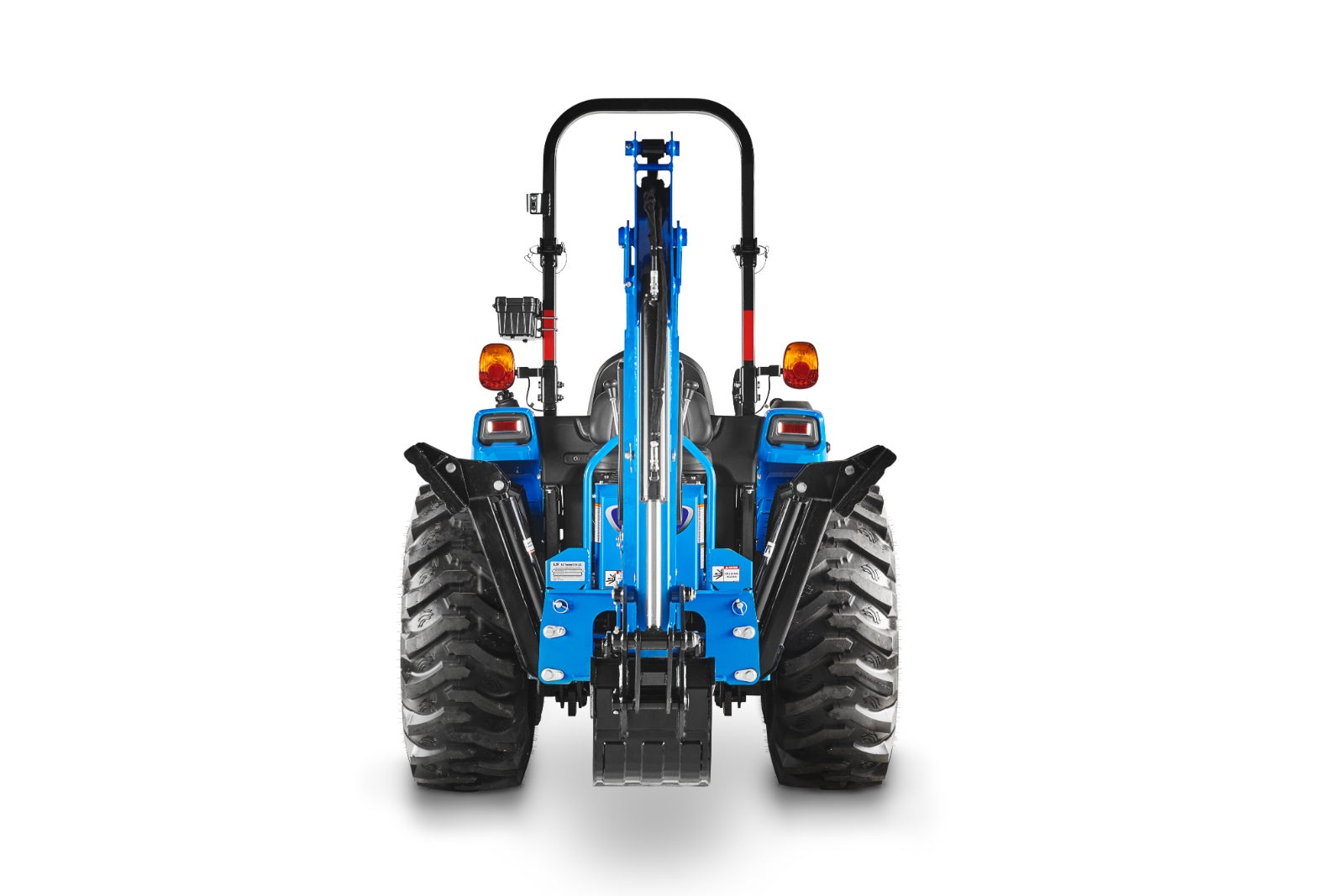

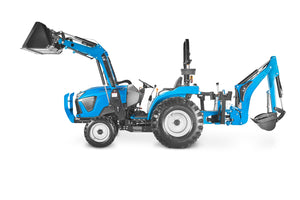

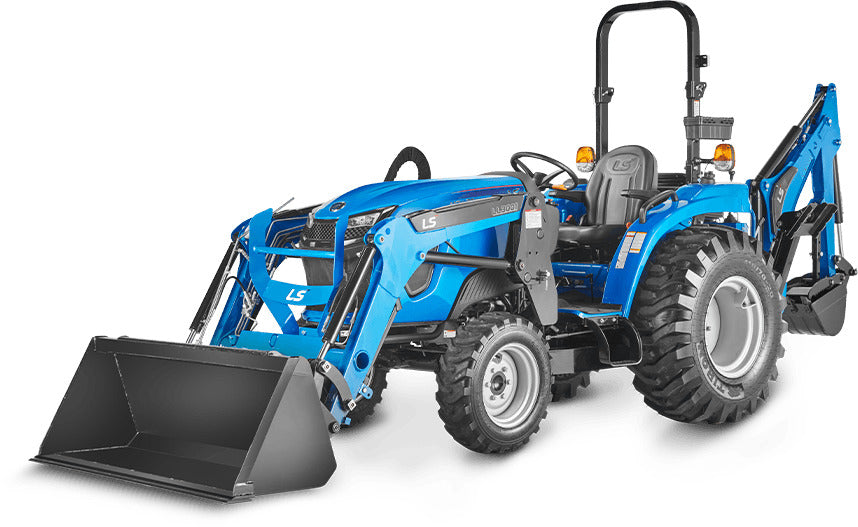

LS Tractor MT242HE – 42.5HP
LS Tractor MT242HE – 42.5HP
LS Tractor MT242HE – 42.5HP
LS Tractor MT242HE – 42.5HP

LS Tractor MT242HE – 42.5HP

Call For Price
SKU: LS Tractor MT242HE – 42.5HP-MT242HE
Categories : LS Tractor
GET MORE INFO
×

Description:

Features:

  • Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility
  • Much improved seat comfortability
  • Cruise control & linked pedal functionalities (Engine RPM matches user input demand on F/R HST pedals) (Linked pedal-option)
  • Factory A/C cab available in a 25HP tractor
  • New hood design (LS Family look), Grill open space plus 20%
  • LED head Lamp
  • 1 Inch large tire size and four different tire options
  • Larger lifting capacity, loader lifting capacity of New MT226E (LL3301/2) 1,965lbs. New MT2E & MT2(LL3303) 2,506lbs.
  • Workability, 4-point mount structure as well as digging depth of 97.2” and bucket digging force of 3,663lbs.
  • TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
  • E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift. (option)

Specifications:

Engine

  • Type: 4-Cylinder, Liquid-Cooled, Diesel, NA, CRDI
  • Model (Tier 4): Yanmar
  • Engine HP (Gross): 42.5 HP
  • PTO HP: 34.8 HP
  • Rated Speed: 2,600 RPM
  • Displacement: 133.6 cu in
  • Fuel Tank Capacity: 10.6 gallons
  • Alternator: 12V – 55 Amps

Drive Train

  • Transmission Type: HST (Hydrostatic Transmission)
  • Number of Speeds: 3 Ranges
  • Brakes: Wet, Multi-Disc
  • Steering: Hydrostatic Power Steering

PTO

  • Type: Independent
  • Rear PTO RPM: 540 (Standard)

Hydraulic System

  • Control System: Position
  • Implement Pump Flow: 6.7 gpm
  • Steering Pump Flow: 5 gpm
  • Total Flow: 11.7 gpm
  • 3-Point Hitch Category: CAT I
  • Hitch Lift Capacity: 1,808 lbs
  • Remote Valves: Option

Dimensions

  • Overall Length (Frame to Link): 125 inches
  • Overall Width with Tires: 66 inches
  • Wheelbase: 74 inches
  • Height to Top: 95 inches

Tire Size

  • Ag (Front / Rear): 7 – 14 / 11.2 – 24
  • Industrial (Front / Rear): 27X8.50-15 / 43X16.00-20
  • Versa Turf (Front / Rear): 27X8.50-15 / 43X16.00-20
  • Turf (Front / Rear): 25X8.50-14 / 41X14.00-20

Weight

  • Total Weight without Ballast: 3,294 lbs
