Description:

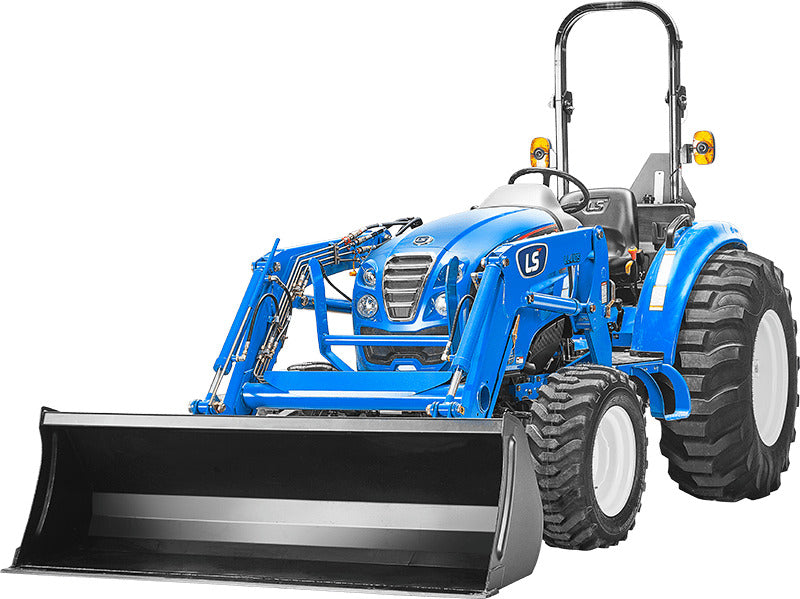

The MT3 series compact tractor comes in several configurations, one of these is the popular cab configuration. This feature along with high-performance and quality design makes this LS tractor series ready for a variety of applications.

Specifications:

Engine

• Type: Vertical Water-Cooled 4-Cycle Diesel Engine
• Model: L3C19-T (Tier 4)
• Gross Engine Power: 40 HP
• PTO Power: 32.0 HP
• Rated Speed: 2,600 RPM
• Displacement: 114.7 cu. in.
• Fuel Tank Capacity: 12.4 gallons
• Alternator: 12V – 70 Amps

Drive Train

• Transmission: Hydrostatic (HST)
• Number of Speeds: 3 Ranges (HST)
• Brakes: Wet, Multi-Disc
• Steering: Hydrostatic Power Steering

PTO

• Type: Independent
• Mid PTO RPM: 2,000 (Optional)
• Rear PTO RPM: 540

Hydraulic System

• Control System: Position / Draft
• Implement Pump Flow: 8.2 gpm
• Steering Pump Flow: 5.5 gpm (HST)
• Total Hydraulic Flow: 13.7 gpm (HST)
• 3-Point Hitch Category: CAT 1
• Hitch Lift Capacity: 1,808 lbs
• Remote Valves: 2 Pairs (Front) / 2 Pairs (Rear) (Standard, Detent)

Dimensions

• Overall Length, Bumper to Link: 128.3 in.
• Wheelbase: 69 in.
• Overall Width with Tires: 62 in.
• Height to Top of ROPS/Cab: 86.6 in.

Tire Sizes

• Ag Front/Rear: 7 – 14 / 11.2 – 24
• Industrial Front/Rear: 25 x 8.5 – 14 / 43 x 16 – 20
• Turf Front/Rear: 25 x 8.5 – 14 / 41 x 14 – 20

Weight

• Total Weight without Ballast: 3,661 lbs
